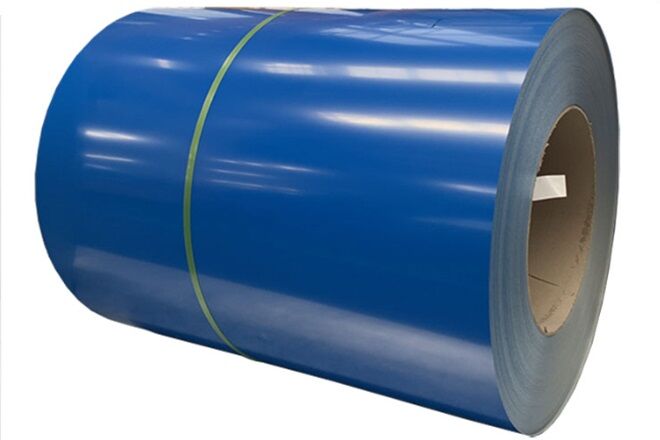

This is the PPGL steel coil Profile:
Top(Finish) Coating
Primer Coating
Chromate Coating
Zinc Coating
Base Metal(Cold Rolled Steel Sheet)
Zinc Coating
Chromate Coating
Epoxy, Polyester
The substrate is an annealed cold-rolled steel coil.
Chromated paint is used for cleaning the surface of the cold-rolled coil.
After Chromated, the next is zinc coated. The coil becomes a galvalume steel coil now.
After zinc coated, the next is Chromated again, for cleaning the galvalume steel coil surface again.
The primer coating is used for increasing the adhesion of the top coating. When cold roll forms, the paint will not fall off.
The top paint coating metal is PE or PVDF.
Specification:
| Substrate | DX51D, ASTM a653 |
| Thickness | 0.13-0.8 mm |
| Width | 600-1250 mm |
| Zinc | 20-120g |
| Paint | Top paint : 10-30mic Back paint: 5-25 mic |
Mechanical Properties:
| Grade | Yield Strength MPa | tensile strength MPa | Elongation after breaking A 80mm % not less than |
| DX51D+AZ | - | 270～500 | 22 |
| DX52D+AZ | 140～300 | 270～420 | 26 |
| DX53D+AZ | 140～260 | 270～380 | 30 |
| DX54D+AZ | 120～220 | 260～350 | 36 |
